You've seen the ripper shank on the back of large track machines before. They have them because the concentrated force on the single shank can tear through buried materials quickly. Now you can have that advantage on your CADDigger.

Even 5400 pounds of ripping power can be challenged when that force is distributed across a 18” bucket width. Roots, stumps and other buried obstacles are easily removed when all of the force is concentrated at one point.

That is the reason MetKit has developed The Ripper. Buried objects are easily removed when the ripper is installed in place of the bucket. Use The Ripper for stump removal, root removal, abandoned water lines, large rocks, baked clay soil.

The over 22” long, 3/4” thick, 36,000 psi yield A36 steel shank acts like a “Super Wrecking Bar”. Get the Ripper under an object and hydraulically “pry” the shank to create many times the ripping power of the bucket alone. The Ripper gives you the power to rip through or move many things the bucket can not.

Four models of the Ripper have been developed. Select yours based on the backhoe you have.

  • 608, 610, 628 Use the Model 600R

  • 708, 710, 728 Use the Model 700R

  • 808, 810, 821, 831, 841 use the Model 800R or 800TH*

* the 800TH is the model shown to the right specifically developed for use with the CADThumb.

NOTE: The Model 600R works with or without the Thumb.


Model 800TH

  • Two Pin Installation

  • Easy On & Off

  • Simple Fabrication

  • Self Fixturing Design

  • Precision Cut Burnouts

  • All Steel Supplied including 2 pins

  • Instructions Included
Your Ripper Kit will come with instructions for assembly. Select your Ripper Kit, ready to weld... (model 600R and 800R parts shown to right)

Model
600R----- $253.00,  Shipping included in the continental U.S
700R----- $253.00,  Shipping included in the continental U.S.
800R----- $289.00,  Shipping included in the continental U.S
800TH---  $276.00,  Shipping included in the continental U.S

NOTE: For customers who wish to adapt The Ripper to other backhoes, we recommend using the Model 800R.



Many customers have asked for a larger volume bucket for use with the 800 Series CADDiggers.

MetKit now offers TWO (2)!

  • Choose from 15 or 18 inch wide.
  • The preformed back and the precision flame cut parts make fabrication of the Rounded Bucket a short project.
  • Precut pins, abrasion resistant edge and teeth included.

800 Series Rounded Bucket kit

15” ----- $289.00
18” ----- $329.00
delivered in the Continental US.

The 18 inch Rounded bucket is shown at right.


  • Two Pin Installation

  • Easy On & Off

  • Simple Fabrication

  • Self Fixturing Design

  • Precision Cut Burnouts

  • All Steel Supplied including 2 pins

  • Instructions Included

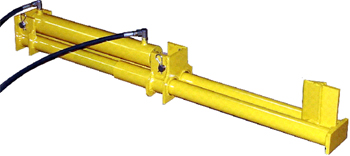

Lets Split Wood!
Spending $1000 or more on a splitter doesn’t save you money on your heating bill. MetKit customers asked for a cost effective woodsplitter kit so we came up with the 800S. Turn your CADDigger Model 821 (or other CADDigger) into a powerful woodsplitter.

The 800S was developed as the lowest cost way MetKit could offer a woodsplitter kit. Simply weld the frame together, put the boom cylinder in from your 800 Series CADDigger, and you have a 7 ton, 20 inch woodsplitter! Split 10 to 12 inch diameter, 20 inch long wood with the 12 second cycle time.

  • Two Pin Installation

  • Easy On & Off

  • Simple Fabrication

  • Self Fixturing Design

  • Precision Cut Burnouts

  • All Steel Supplied including 2 pins

  • Instructions Included
800S Splitter kit ----- $265.00 delivered in the Continental US.

Don’t have a 800 Series CADDigger? No Problem! MetKit can supply the correct cylinder with your 800S splitter kit so you can run your splitter from almost any machine with hydraulics available. Call for pricing.

The quality parts in the 800S splitter makes assembly a snap. You can build the 800S in the morning and split wood in the afternoon.
